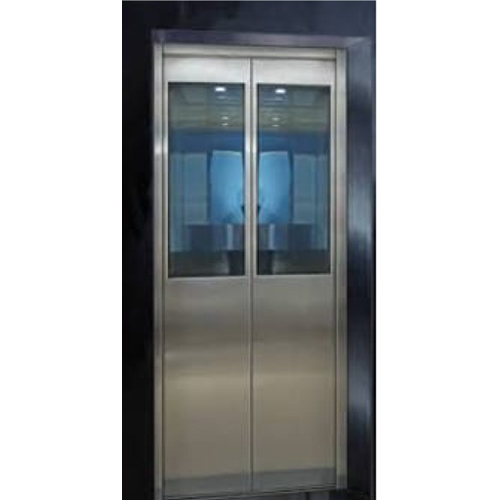

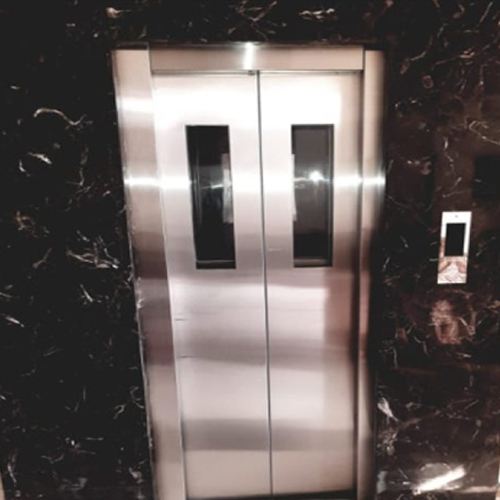

Automatic Elevator

• Capacity
• 4-16 persons / 300-1200 kg

• Car Dimension
• Customizable (e.g., 1100 x 1400 mm)

• Control Device
• Other, Microprocessor/PLC based

• Door Opening Size
• 700 mm - 900 mm (customizable)

• Drive Type
• Other, Traction, VVVF Drive

• Hoist Way Size
• Standard & Customized as per site

• Inclination
• 0 (Vertical)

• Load Capacity
• 300 kg - 1200 kg

• Machine Room Size
• Standard/Available in MRL (Machine Room Less)

• Material
• other Sheet, Stainless Steel, Toughened Glass

• Max. Lifting Height
• Up to 60 meters

• Max. Lifting Weight
• Up to 1200 kg

• Mechanism Type
• Other, Automatic Sliding Door

• Noise Level
• 60 dB

• Overhead Height
• 3800 - 4500 mm

• Pit Depth
• 1200 - 1500 mm

• Power Supply
• 3 phase, 4 wire system

• Safety Device
• Other, Emergency Stop, Overload Sensor, Door Interlock, Emergency Light, Alarm Bell

• Speed
• 0.5 - 2.5 m/s

• Type
• Other, Automatic Glass Door Elevator

• Usage
• Other, Residential, Commercial, Hotel, Hospital, Shopping Mall

• Voltage
• AC 220V/380V, 50Hz/60Hz

• Working Temperature
• -5C to 40C

• Capacity
• Depends on design, typically 4-20 persons or 300-1500 kg

• Car Dimension
• Custom as per shaft size (e.g. 1100 x 1400 mm)

• Control Device
• Other, Microprocessor-based control panel

• Door Opening Size
• 700 mm - 1000 mm (customizable)

• Drive Type
• Other, Geared or Gearless Traction/ACVVVF

• Hoist Way Size
• As per lift capacity and car size design

• Inclination
• 0 (Vertical lift)

• Load Capacity
• 300 to 1500 kg

• Machine Room Size
• Standard as per IS/EN elevator norms

• Material
• other Sheet, Mild Steel (MS)

• Max. Lifting Height
• Up to 30 meters or more, customizable

• Max. Lifting Weight
• 1500 kg

• Mechanism Type
• Other, Traction or Hydraulic

• Noise Level
• <60 dB

• Overhead Height
• >3500 mm

• Pit Depth
• >1500 mm

• Power Supply
• 3-phase AC

• Safety Device
• Other, Overload sensor, safety gear, limit switch, emergency stop

• Speed
• 0.5 m/s to 1.0 m/s

• Type
• Other, Side Opening Collapsible Door Elevator

• Usage
• Other, Residential, commercial, industrial buildings

• Voltage
• 220V/380V, 50Hz/60Hz (customizable)

• Working Temperature
• -5C to +40C

• Capacity
• Standard (depends on elevator system)

• Car Dimension
• N/A (applies to cabin)

• Control Device
• Other, Manual/Automatic (as per elevator configuration)

• Door Opening Size
• Customizable as per elevator requirements

• Drive Type
• Other, Manual or automatic swing mechanism

• Hoist Way Size
• Dependent on installation

• Inclination
• Vertical

• Load Capacity
• N/A (applies to elevator, not door)

• Material
• other Sheet, Mild Steel (Polished)

• Max. Lifting Height
• N/A (applies to elevator, not door)

• Mechanism Type
• Other, Mechanical Swing Door

• Noise Level
• Low

• Power Supply
• Electric

• Safety Device
• Other, Safety lock and inspection window

• Speed
• N/A (applies to cabin, not door)

• Type
• Other, Elevator Swing Door

• Usage
• Other, Passenger, Residential, Commercial elevators

• Voltage
• 220V / 380V

• Working Temperature
• 0C to 60C

• Capacity
• As per elevator requirement (typically up to 20 Persons)

• Car Dimension
• Customized (as per lift shaft design)

• Control Device
• Other, Automatic Control Panel

• Door Opening Size
• 700 mm to 1200 mm (customized)

• Drive Type
• Other, Electric Motor Driven

• Hoist Way Size
• As per shaft dimensions

• Inclination
• Vertical door movement - No inclination

• Load Capacity
• Customized as per lift design

• Machine Room Size
• Dependent on lift design (customized)

• Material
• other Sheet, Mild Steel (MS)

• Max. Lifting Height
• Configurable as per building specification

• Max. Lifting Weight
• Depends on elevator payload (typically up to 1600 kg)

• Mechanism Type
• Other, Automatic Sliding Telescopic

• Noise Level
• Low Noise Operation (<60 dB)

• Overhead Height
• Min. 3000 mm (can vary)

• Pit Depth
• Min. 1500 mm (customized)

• Power Supply
• Single or Three Phase, 50 Hz

• Safety Device
• Other, Door Lock, Emergency Stop, Sensor for obstruction detection

• Speed
• Compatible with lift car speeds up to 1.5 m/s

• Type
• Other, Telescopic Elevator Door

• Usage
• Other, Residential, Commercial, Hospital, Industrial Elevators

• Voltage
• 220-415 V AC

• Working Temperature
• -10C to +50C

• Capacity
• 6-20 Persons

• Car Dimension
• Customizable as per Shaft Size

• Control Device
• Other, Microprocessor Based Control Panel

• Door Opening Size
• 700 mm to 1200 mm

• Drive Type
• Other, VVVF (Variable Voltage Variable Frequency)

• Hoist Way Size
• Corresponds to Car Size + 500 mm

• Inclination
• 0 degree (Vertical)

• Load Capacity
• 450-1600 kg

• Machine Room Size
• Minimum 2000 mm x 3000 mm

• Material
• other Sheet, Stainless Steel (Grade 304/316)

• Max. Lifting Height
• Up to 60 m

• Max. Lifting Weight
• 1600 kg

• Mechanism Type
• Other, Automatic Sliding Door

• Noise Level
• Less than 60 dB

• Overhead Height
• 3500 mm Minimum

• Pit Depth
• 1200 mm Minimum

• Power Supply
• Three Phase, 50/60 Hz

• Safety Device
• Other, Overload Sensor, Emergency Stop, Door Safety Edge, Intercom System

• Speed
• 1.0-2.5 m/s

• Type
• Other, Automatic Door Elevator

• Usage
• Other, Passenger / Residential / Commercial

• Voltage
• 220V / 380V

• Working Temperature
• -10C to 50C

• Capacity
• 6-20 persons

• Car Dimension
• Customizable as per shaft

• Control Device
• Other, Microprocessor-based Controller

• Door Opening Size
• 700mm - 1200mm

• Drive Type
• Other, Automatic, VVVF Drive

• Hoist Way Size
• Customizable

• Load Capacity
• Up to 2000 kg

• Machine Room Size
• Standard/Optional Machine Room Less (MRL)

• Material
• other Sheet, High-grade stainless steel

• Max. Lifting Height
• Up to 60 meters

• Max. Lifting Weight
• 2000 kg

• Mechanism Type
• Other, Automatic Sliding

• Noise Level
• <65 dB

• Overhead Height
• 4200 mm

• Pit Depth
• 1600 mm

• Power Supply
• AC 50Hz

• Safety Device
• Other, Overload sensor, Door sensor, Emergency stop

• Speed
• 1.0 - 2.5 m/s

• Type
• Other, Automatic Center Opening

• Usage
• Other, Passenger, Freight, Service

• Voltage
• 220V/380V

• Working Temperature
• -10C to +40C
